TRANSFORMER TUBE GUITAR AMP

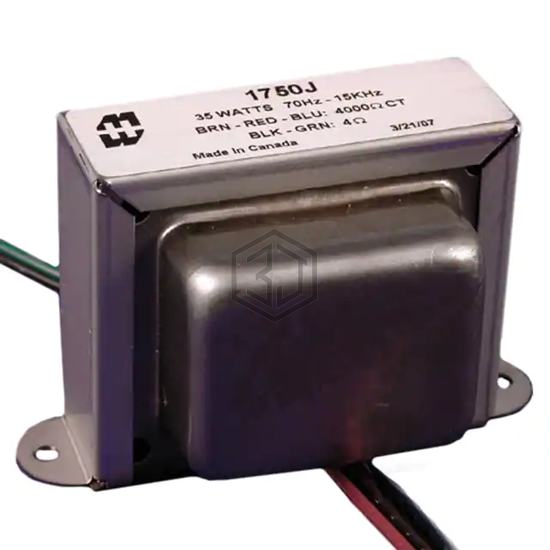

1750J is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 4.076" L x 3.170" W (103.53mm x 80.52mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 31.11:1 |
| Impedance - Primary (Ohms) | 4kCT |
| Impedance - Secondary (Ohms) | 4 |
| DC Resistance (DCR) - Primary | 185Ohm |
| DC Resistance (DCR) - Secondary | 400mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 35W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.076" L x 3.170" W (103.53mm x 80.52mm) |
| Height - Seated (Max) | 2.630" (66.80mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750J and get a quote within 24 hours.
