TRANSFORMER TUBE GUITAR AMP

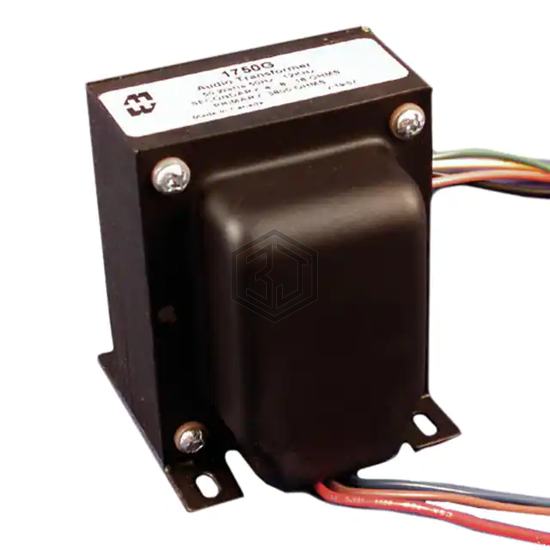

1750G is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.750" L x 3.320" W (95.25mm x 84.33mm), termination style Wire Leads, frequency range 50Hz ~ 12kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 14.21:1 |
| Impedance - Primary (Ohms) | 3.8kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 95.61Ohm |
| DC Resistance (DCR) - Secondary | 250mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 50Hz ~ 12kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 50W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.750" L x 3.320" W (95.25mm x 84.33mm) |
| Height - Seated (Max) | 3.873" (98.37mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750G and get a quote within 24 hours.
