TRANSFORMER TUBE GUITAR AMP

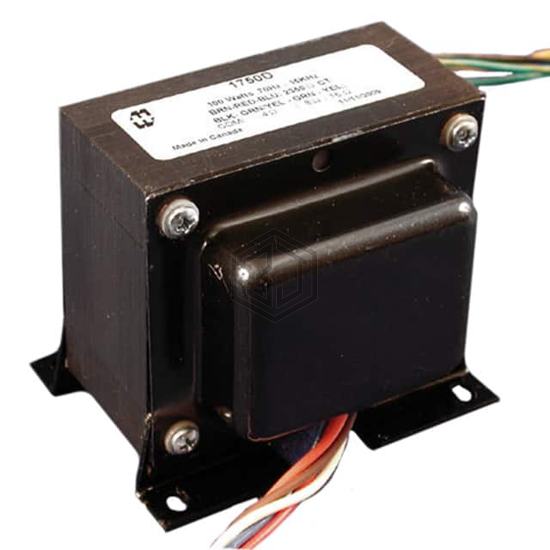

1750D is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 4.050" L x 3.715" W (102.87mm x 94.36mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 7,304
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 2.35kCT/25m |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 33.09Ohm, 34.82Ohm, 370mOhm |
| DC Resistance (DCR) - Secondary | 300mOhm, 690mOhm, 860mOhm |
| Transformer Type | - |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 100W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.050" L x 3.715" W (102.87mm x 94.36mm) |
| Height - Seated (Max) | 3.563" (90.50mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750D and get a quote within 24 hours.
