TRANSFORMER 3W 25MA TUBE TYPE

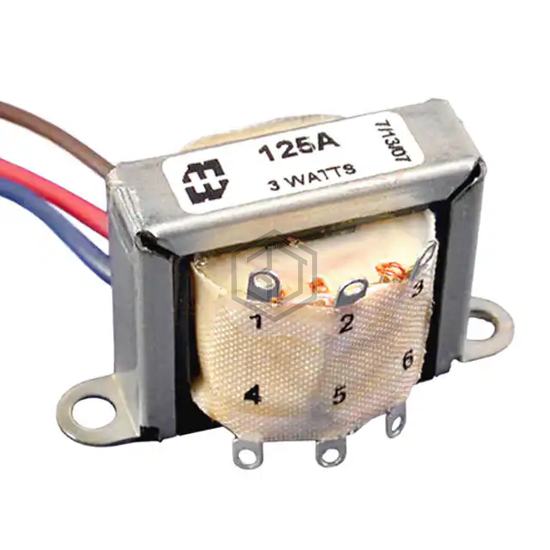

125A is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER 3W 25MA TUBE TYPE. Key specifications: mounting type Chassis Mount, size / dimension 2.060" L x 1.250" W (52.32mm x 31.75mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.
In Stock: 434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 1.2k ~ 25k |
| Impedance - Secondary (Ohms) | 1.5 ~ 15 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | General Purpose |
| Frequency Range | 150Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 3W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.060" L x 1.250" W (52.32mm x 31.75mm) |
| Height - Seated (Max) | 1.190" (30.23mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 125A and get a quote within 24 hours.
