TRANSFORMER TUBE GUITAR AMP

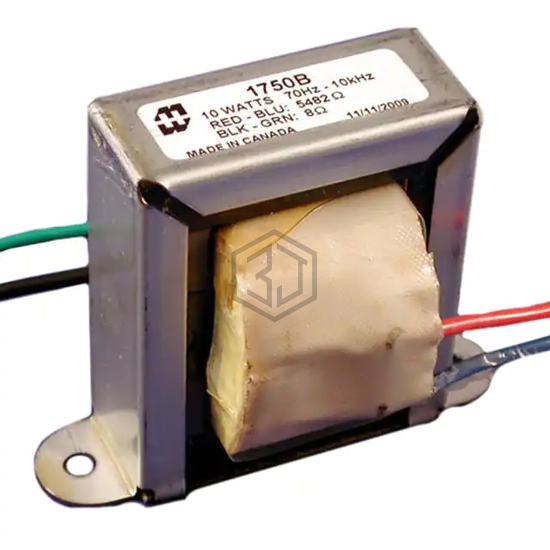

1750B is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 2.875" L x 1.900" W (73.02mm x 48.26mm), termination style Wire Leads, frequency range 70Hz ~ 10kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 5.482k |
| Impedance - Secondary (Ohms) | 8 |
| DC Resistance (DCR) - Primary | 254.8Ohm |
| DC Resistance (DCR) - Secondary | 420mOhm |
| Transformer Type | - |
| Frequency Range | 70Hz ~ 10kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 1750V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 10W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.875" L x 1.900" W (73.02mm x 48.26mm) |
| Height - Seated (Max) | 2.433" (61.80mm) |
| Termination Style | Wire Leads |
