TRANSFORMER TUBE GUITAR AMP

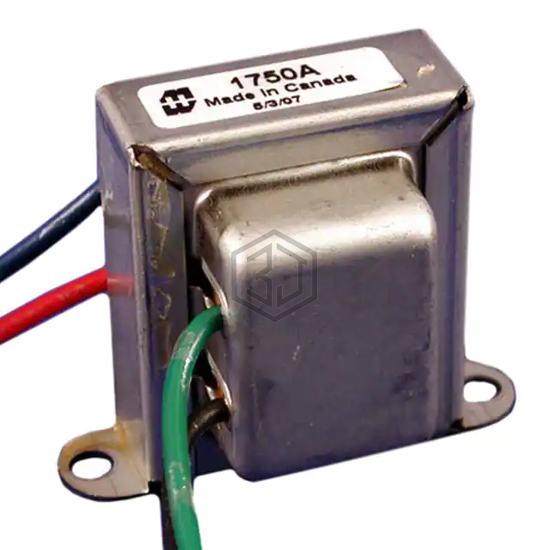

1750A is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 2.000" L x 1.440" W (50.80mm x 36.58mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 53.11:1 |
| Impedance - Primary (Ohms) | 22.8k |
| Impedance - Secondary (Ohms) | 8 |
| DC Resistance (DCR) - Primary | 1.065kOhm |
| DC Resistance (DCR) - Secondary | 1.02Ohm |
| Transformer Type | Single Ended Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 3.5W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.000" L x 1.440" W (50.80mm x 36.58mm) |
| Height - Seated (Max) | 1.773" (45.03mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750A and get a quote within 24 hours.
