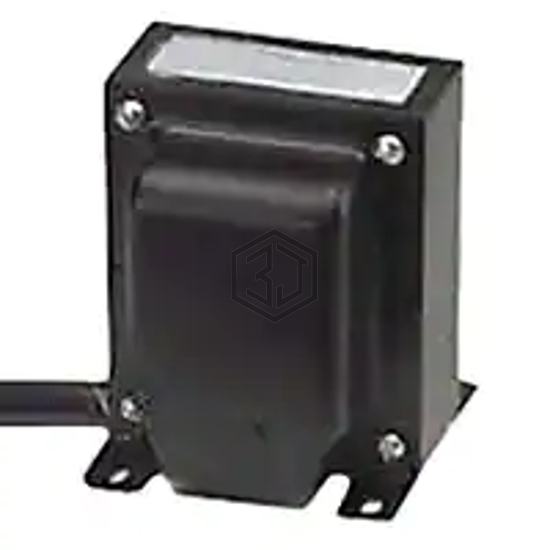

TRANSFORMER AUDIO 1.9KCT 280W
1650W is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 1.9KCT 280W. Key specifications: mounting type Chassis Mount, size / dimension 7.500" L x 4.380" W (190.50mm x 111.25mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 1.9kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | ±1dB |
| Return Loss | - |
| Power Level | 280W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.500" L x 4.380" W (190.50mm x 111.25mm) |
| Height - Seated (Max) | 5.250" (133.35mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1650W and get a quote within 24 hours.
