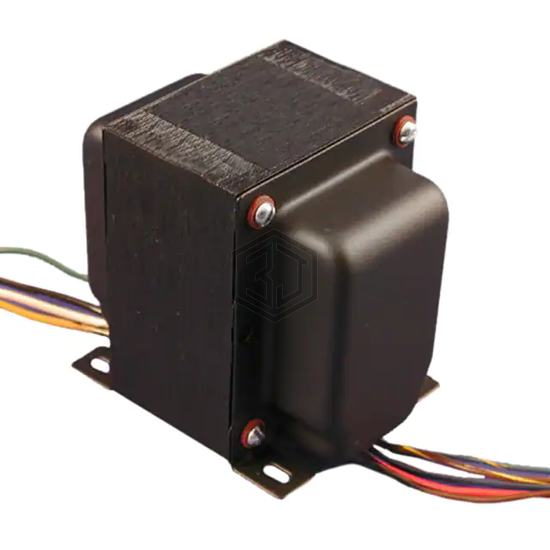

1650TA - Hammond Manufacturing - Audio Transformers

1650TA

Hammond Manufacturing

AUDIOPHILE TUBE OUTPUT TRANSFRMR

1650TA is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR. Key specifications: mounting type Chassis Mount, size / dimension 4.500" L x 3.750" W (114.30mm x 95.25mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary-
Impedance - Primary (Ohms)1.9kCT
Impedance - Secondary (Ohms)4, 8, 16
DC Resistance (DCR) - Primary22.07Ohm, 24.85Ohm
DC Resistance (DCR) - Secondary251mOhm, 334mOhm, 359mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range30Hz ~ 30kHz
Frequency Response±1dB
Voltage - Isolation2000V @ 1 Second
Insertion Loss-
Return Loss-
Power Level120W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max)4.560" (115.82mm)
Termination StyleWire Leads

Frequently Asked Questions

1650TA is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR

The mounting type of 1650TA is Chassis Mount.

The size of 1650TA is 4.500" L x 3.750" W (114.30mm x 95.25mm).

The termination type of 1650TA is Wire Leads.
