TRANSFORMR AUDIO 5KCT 4/8/16 IMP

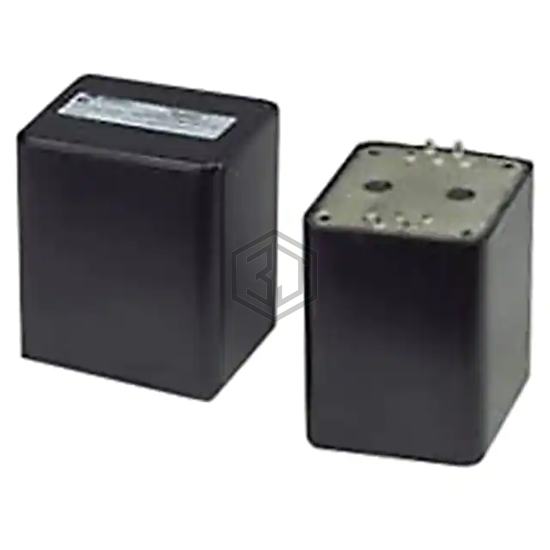

1650RP is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMR AUDIO 5KCT 4/8/16 IMP. Key specifications: mounting type Through Hole, size / dimension 5.000" L x 4.250" W (127.00mm x 107.95mm), frequency range 30Hz ~ 30kHz.
In Stock: 5,419
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 5k |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 44Ohm, 98.5Ohm |
| DC Resistance (DCR) - Secondary | 210mOhm, 344mOhm |
| Transformer Type | Push-Pull Potted, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 100W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 5.000" L x 4.250" W (127.00mm x 107.95mm) |
| Height - Seated (Max) | 4.500" (114.30mm) |
| Termination Style | - |
Submit your RFQ for 1650RP and get a quote within 24 hours.
