AUDIOPHILE TUBE OUTPUT TRANSFRMR

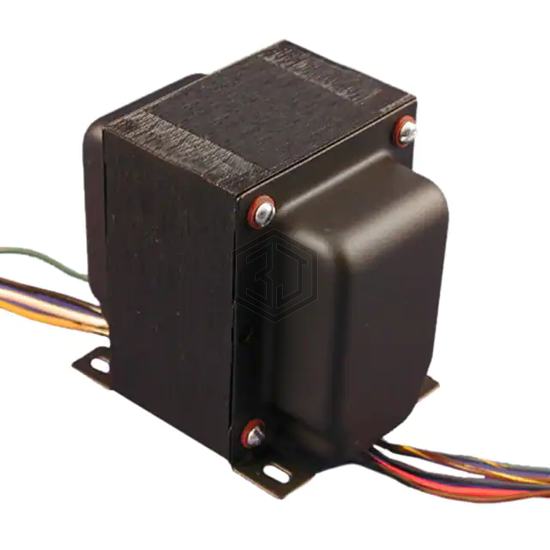

1650RA is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR. Key specifications: mounting type Chassis Mount, size / dimension 4.250" L x 3.750" W (107.95mm x 95.25mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 5kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 47.43Ohm, 54.65Ohm |
| DC Resistance (DCR) - Secondary | 232mOhm, 333mOhm, 343mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 3535VDC @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 100W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.250" L x 3.750" W (107.95mm x 95.25mm) |
| Height - Seated (Max) | 4.560" (115.82mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1650RA and get a quote within 24 hours.
