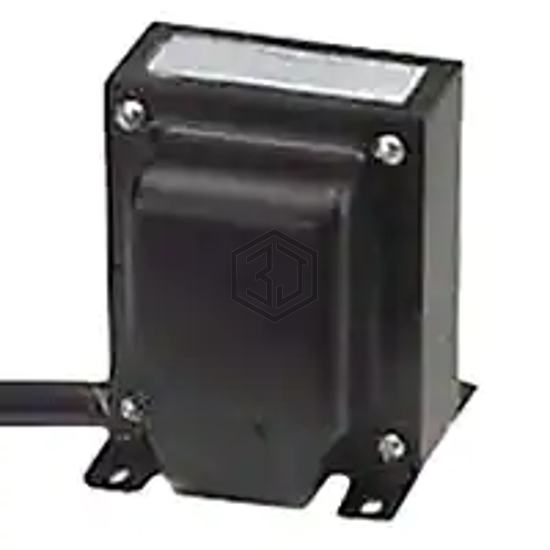

TRANSFORMER AUDIO 4.3KCT 60W
1650N is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 4.3KCT 60W. Key specifications: mounting type Chassis Mount, size / dimension 4.185" L x 3.125" W (106.30mm x 79.38mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 4.3kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 82.5Ohm |
| DC Resistance (DCR) - Secondary | 232mOhm, 270mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000V @ 1 Second |
| Insertion Loss | ±1dB |
| Return Loss | - |
| Power Level | 60W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.185" L x 3.125" W (106.30mm x 79.38mm) |
| Height - Seated (Max) | 3.859" (98.02mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1650N and get a quote within 24 hours.
