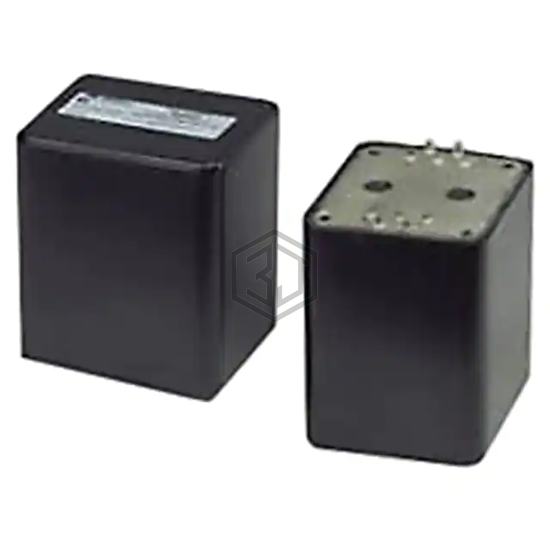

TRANSFMR AUDIO 3.4KCT 4/8/16 IMP
1650KP is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFMR AUDIO 3.4KCT 4/8/16 IMP. Key specifications: mounting type Through Hole, size / dimension 3.880" L x 3.310" W (98.55mm x 84.07mm), frequency range 30Hz ~ 30kHz.
In Stock: 2,562
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 3.4kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Push-Pull Potted, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 50W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 3.880" L x 3.310" W (98.55mm x 84.07mm) |
| Height - Seated (Max) | 4.250" (107.95mm) |
| Termination Style | - |
