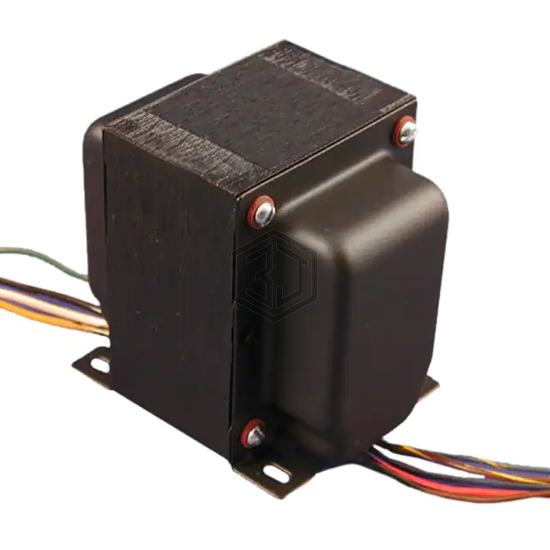

1650HA - Hammond Manufacturing - Audio Transformers

1650HA

Hammond Manufacturing

AUDIOPHILE TUBE OUTPUT TRANSFRMR

1650HA is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR. Key specifications: mounting type Chassis Mount, size / dimension 4.000" L x 3.130" W (101.60mm x 79.50mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.

In Stock: 4

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary-
Impedance - Primary (Ohms)6.6kCT
Impedance - Secondary (Ohms)4, 8, 16
DC Resistance (DCR) - Primary63.69Ohm, 71.33Ohm
DC Resistance (DCR) - Secondary74mOhm, 223mOhm, 258mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range30Hz ~ 30kHz
Frequency Response±1dB
Voltage - Isolation2000V @ 1 Second
Insertion Loss-
Return Loss-
Power Level40W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max)3.810" (96.77mm)
Termination StyleWire Leads

Frequently Asked Questions

1650HA is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR

The mounting type of 1650HA is Chassis Mount.

The size of 1650HA is 4.000" L x 3.130" W (101.60mm x 79.50mm).

The termination type of 1650HA is Wire Leads.
