TRANSFORMER AUDIO 6.6KCT 40W

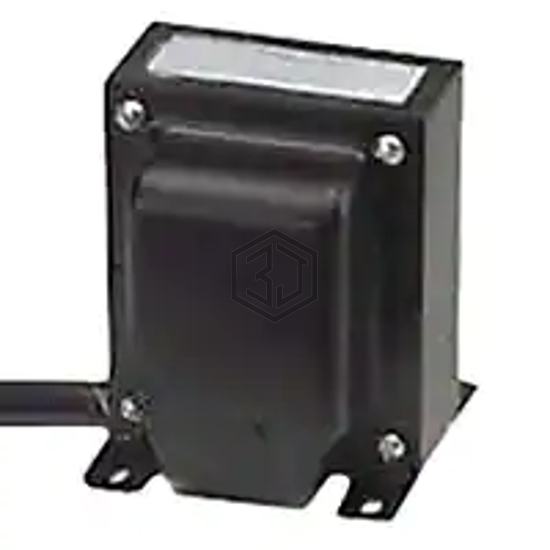

1650H is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 6.6KCT 40W. Key specifications: mounting type Chassis Mount, size / dimension 4.000" L x 3.130" W (101.60mm x 79.50mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.
In Stock: 5,488
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 6.6kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | ±1dB |
| Return Loss | - |
| Power Level | 40W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.000" L x 3.130" W (101.60mm x 79.50mm) |
| Height - Seated (Max) | 3.810" (96.77mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1650H and get a quote within 24 hours.
