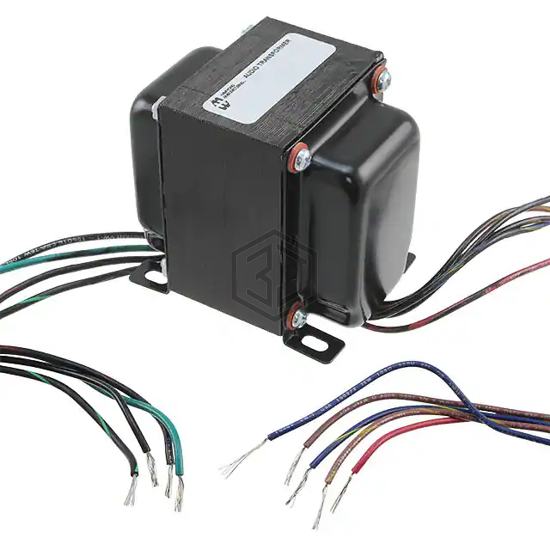

AUDIOPHILE TUBE OUTPUT TRANSFRMR
1650E is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR. Key specifications: mounting type Chassis Mount, size / dimension 3.250" L x 2.500" W (82.55mm x 63.50mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 8kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 98.98Ohm, 101.9Ohm |
| DC Resistance (DCR) - Secondary | 154mOhm, 218mOhm, 303mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 15W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.250" L x 2.500" W (82.55mm x 63.50mm) |
| Height - Seated (Max) | 3.060" (77.72mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1650E and get a quote within 24 hours.
