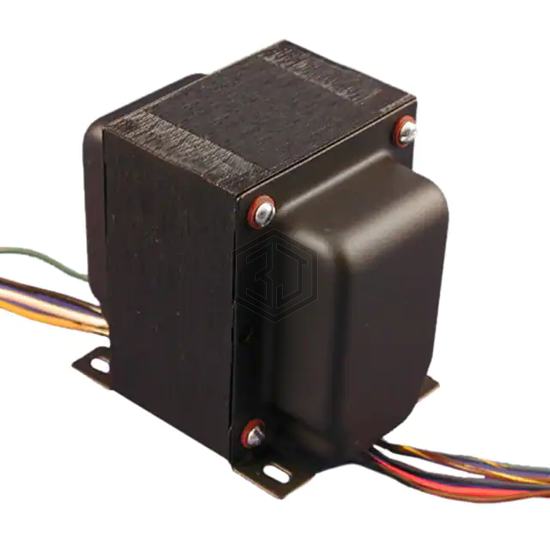

1645A - Hammond Manufacturing - Audio Transformers

1645A

Hammond Manufacturing

AUDIOPHILE TUBE OUTPUT TRANSFRMR

1645A is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR. Key specifications: mounting type Chassis Mount, size / dimension 3.750" L x 2.500" W (95.25mm x 63.50mm), termination style Wire Leads, frequency range 30Hz ~ 30kHz.

In Stock: 1,046

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary-
Impedance - Primary (Ohms)5kCT
Impedance - Secondary (Ohms)4, 8, 16, 70V
DC Resistance (DCR) - Primary72.11Ohm, 79.35Ohm
DC Resistance (DCR) - Secondary276mOhm, 391mOhm, 464mOhm, 9.304Ohm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range30Hz ~ 30kHz
Frequency Response±1dB
Voltage - Isolation2000V @ 1 Second
Insertion Loss-
Return Loss-
Power Level30W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension3.750" L x 2.500" W (95.25mm x 63.50mm)
Height - Seated (Max)3.060" (77.72mm)
Termination StyleWire Leads

Frequently Asked Questions

1645A is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR

The mounting type of 1645A is Chassis Mount.

The size of 1645A is 3.750" L x 2.500" W (95.25mm x 63.50mm).

The termination type of 1645A is Wire Leads.
