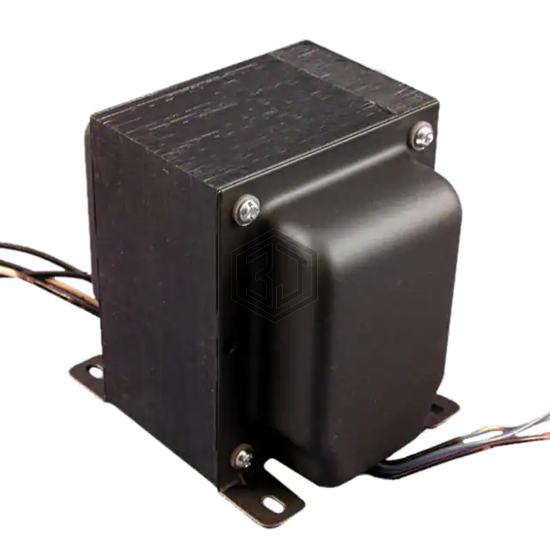

AUDIOPHILE TUBE OUTPUT TRANSFRMR
1638SEA is a Audio Transformers manufactured by Hammond Manufacturing. AUDIOPHILE TUBE OUTPUT TRANSFRMR. Key specifications: mounting type Chassis Mount, size / dimension 4.880" L x 3.750" W (123.95mm x 95.25mm), termination style Wire Leads, frequency range 20Hz ~ 20kHz.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Single Ended Audiophile |
| Frequency Range | 20Hz ~ 20kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000Vrms |
| Insertion Loss | ±1dB |
| Return Loss | - |
| Power Level | 30W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.880" L x 3.750" W (123.95mm x 95.25mm) |
| Height - Seated (Max) | 4.560" (115.82mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1638SEA and get a quote within 24 hours.
