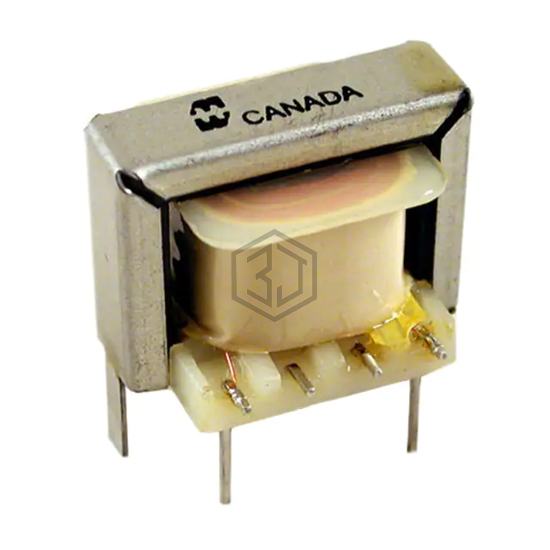

TRANSF AUDIO 600CT 300/1.2K IMP
149V is a Audio Transformers manufactured by Hammond Manufacturing. TRANSF AUDIO 600CT 300/1.2K IMP. Key specifications: mounting type Through Hole, size / dimension 1.060" L x 0.820" W (26.92mm x 20.83mm), termination style PC Pin, frequency range 200Hz ~ 15kHz.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 1.2k, 300/300 |
| DC Resistance (DCR) - Primary | 53Ohm |
| DC Resistance (DCR) - Secondary | 63Ohm |
| Transformer Type | Economical Open Type |
| Frequency Range | 200Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | 0.5dB |
| Return Loss | - |
| Power Level | 1000mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.060" L x 0.820" W (26.92mm x 20.83mm) |
| Height - Seated (Max) | 0.820" (20.83mm) |
| Termination Style | PC Pin |
Submit your RFQ for 149V and get a quote within 24 hours.
