TRANSFORM AUDIO 1K TO 60/240 IMP

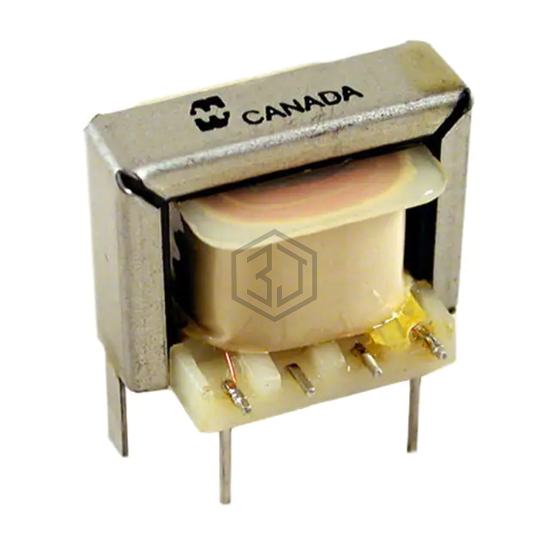

149H is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORM AUDIO 1K TO 60/240 IMP. Key specifications: mounting type Through Hole, size / dimension 1.060" L x 0.820" W (26.92mm x 20.83mm), termination style PC Pin, frequency range 200Hz ~ 15kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 1k |
| Impedance - Secondary (Ohms) | 240, 60/60 |
| DC Resistance (DCR) - Primary | 155Ohm |
| DC Resistance (DCR) - Secondary | 24Ohm |
| Transformer Type | Economical Open Type |
| Frequency Range | 200Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | 0.5dB |
| Return Loss | - |
| Power Level | 200mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.060" L x 0.820" W (26.92mm x 20.83mm) |
| Height - Seated (Max) | 0.820" (20.83mm) |
| Termination Style | PC Pin |
Submit your RFQ for 149H and get a quote within 24 hours.
