TRANSF AUDIO 1.5K TO 125/500 IMP

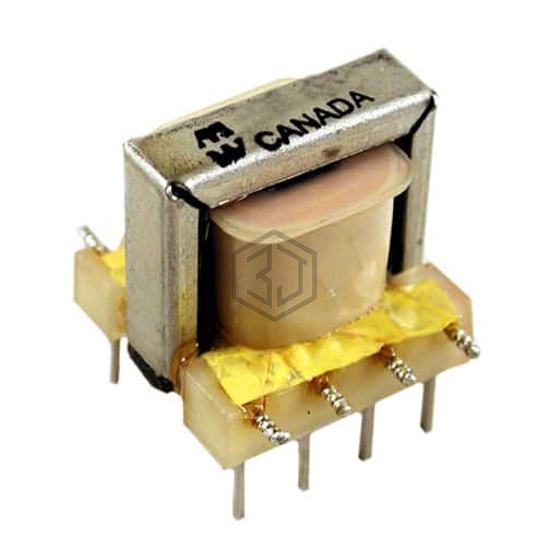

148F is a Audio Transformers manufactured by Hammond Manufacturing. TRANSF AUDIO 1.5K TO 125/500 IMP. Key specifications: mounting type Through Hole, size / dimension 0.820" L x 0.680" W (20.83mm x 17.27mm), termination style PC Pin, frequency range 200Hz ~ 15kHz.
In Stock: 8,967
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 1.5k |
| Impedance - Secondary (Ohms) | 500, 125/125 |
| DC Resistance (DCR) - Primary | 220Ohm |
| DC Resistance (DCR) - Secondary | 58Ohm |
| Transformer Type | Economical Open Type |
| Frequency Range | 200Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | 0.5dB |
| Return Loss | - |
| Power Level | 75mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.820" L x 0.680" W (20.83mm x 17.27mm) |
| Height - Seated (Max) | 0.690" (17.53mm) |
| Termination Style | PC Pin |
Submit your RFQ for 148F and get a quote within 24 hours.
