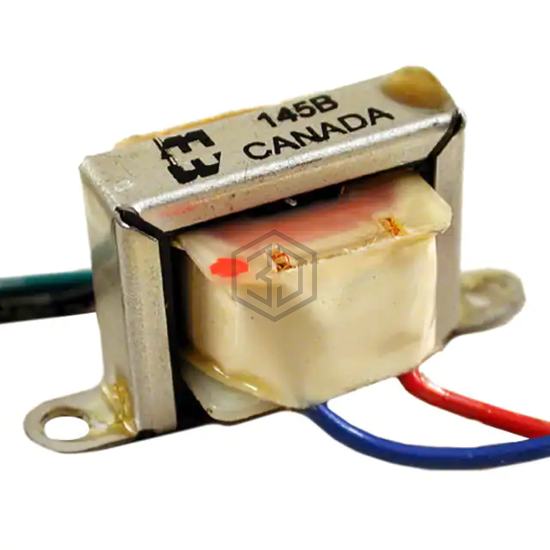

TRANSFORMER AUDIO 2K/200CT IMPED
145G is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 2K/200CT IMPED. Key specifications: mounting type Chassis Mount, size / dimension 1.630" L x 0.880" W (41.40mm x 22.35mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 2k |
| Impedance - Secondary (Ohms) | 200CT |
| DC Resistance (DCR) - Primary | 140Ohm |
| DC Resistance (DCR) - Secondary | 9Ohm |
| Transformer Type | Economical Open Type |
| Frequency Range | 150Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 135mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.630" L x 0.880" W (41.40mm x 22.35mm) |
| Height - Seated (Max) | 0.810" (20.57mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 145G and get a quote within 24 hours.
