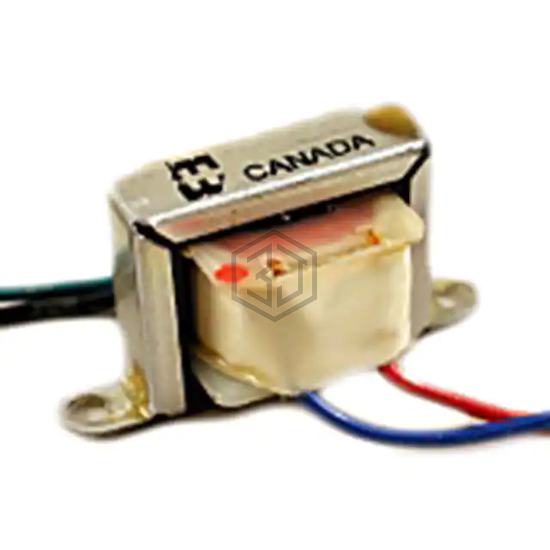

144H - Hammond Manufacturing - Audio Transformers

144H

Hammond Manufacturing

TRANSFORMER AUDIO 500CT/50 IMPED

144H is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 500CT/50 IMPED. Key specifications: mounting type Chassis Mount, size / dimension 1.000" L x 0.690" W (25.40mm x 17.53mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary-
Impedance - Primary (Ohms)500CT
Impedance - Secondary (Ohms)50
DC Resistance (DCR) - Primary28Ohm
DC Resistance (DCR) - Secondary7.3Ohm
Transformer TypeEconomical Open Type
Frequency Range150Hz ~ 15kHz
Frequency Response±1dB
Voltage - Isolation-
Insertion Loss-
Return Loss-
Power Level150mW
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension1.000" L x 0.690" W (25.40mm x 17.53mm)
Height - Seated (Max)0.690" (17.53mm)
Termination StyleWire Leads

Frequently Asked Questions

144H is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 500CT/50 IMPED

The mounting type of 144H is Chassis Mount.

The size of 144H is 1.000" L x 0.690" W (25.40mm x 17.53mm).

The termination type of 144H is Wire Leads.
