TRANSFORMER AUDIO 100K/1.5K IMP

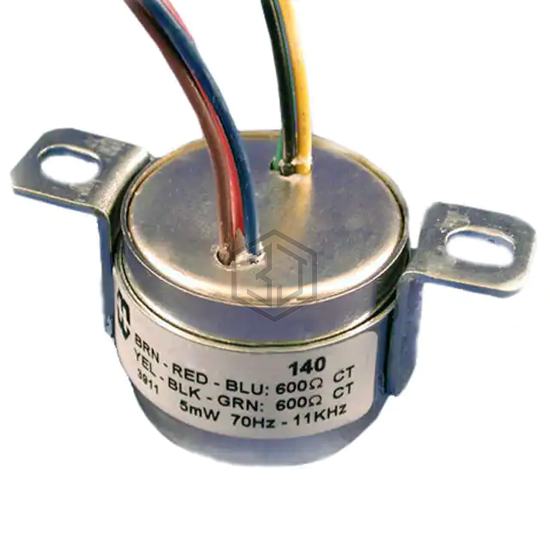

140M is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 100K/1.5K IMP. Key specifications: mounting type Chassis Mount, size / dimension 1.250" Dia (31.75mm), termination style Wire Leads, frequency range 70Hz ~ 11kHz.
In Stock: 3,615
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | 8:1 |
| Impedance - Primary (Ohms) | 100k |
| Impedance - Secondary (Ohms) | 1.5k |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Shielded |
| Frequency Range | 70Hz ~ 11kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.250" Dia (31.75mm) |
| Height - Seated (Max) | 1.000" (25.40mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 140M and get a quote within 24 hours.
