TRANSFORMER 4W 20HZ-20KHZ

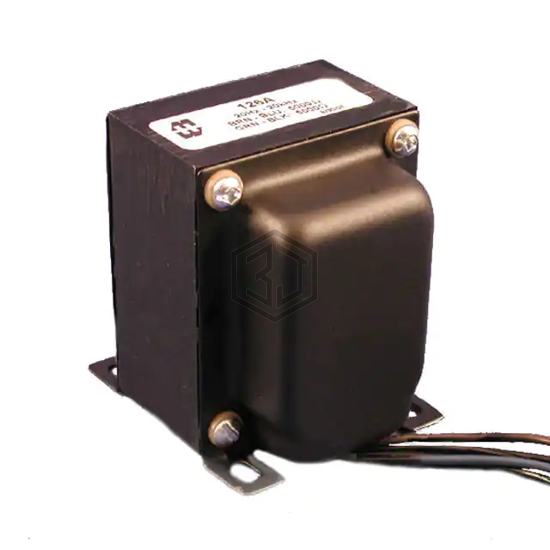

126C is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER 4W 20HZ-20KHZ. Key specifications: mounting type Chassis Mount, size / dimension 3.120" L x 2.500" W (79.25mm x 63.50mm), termination style Wire Leads, frequency range 20Hz ~ 20kHz.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 10k |
| DC Resistance (DCR) - Primary | 375Ohm |
| DC Resistance (DCR) - Secondary | 375Ohm |
| Transformer Type | Single Ended Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 20Hz ~ 20kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 400VDC |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 4W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.120" L x 2.500" W (79.25mm x 63.50mm) |
| Height - Seated (Max) | 3.120" (79.25mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 126C and get a quote within 24 hours.
