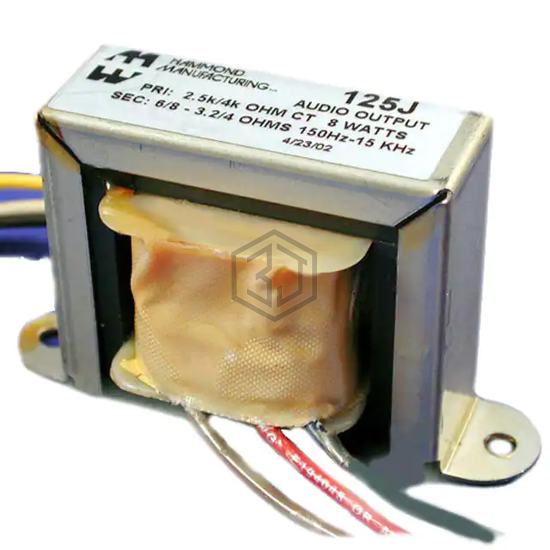

TRANSF AUDIO 2.5K/4K TO 6/8 IMP
125J is a Audio Transformers manufactured by Hammond Manufacturing. TRANSF AUDIO 2.5K/4K TO 6/8 IMP. Key specifications: mounting type Chassis Mount, size / dimension 3.250" L x 1.500" W (82.55mm x 38.10mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 2.5k, 4k |
| Impedance - Secondary (Ohms) | 3.2, 4, 6, 8 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | General Purpose |
| Frequency Range | 150Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 8W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.250" L x 1.500" W (82.55mm x 38.10mm) |
| Height - Seated (Max) | 1.940" (49.28mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 125J and get a quote within 24 hours.
