TRANSFRMR AUDIO 10K TO 2/4/1 IMP

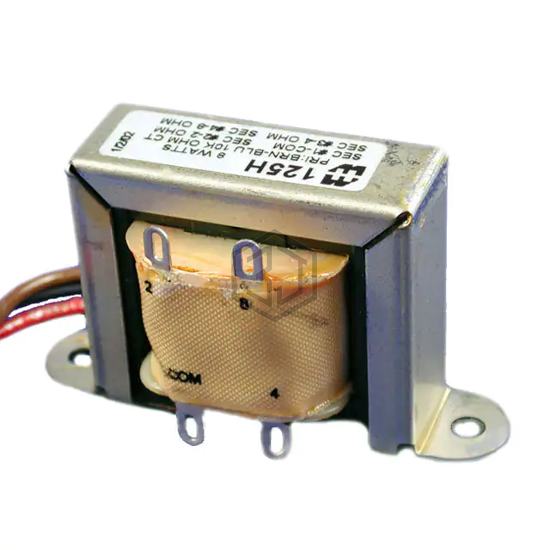

125H is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFRMR AUDIO 10K TO 2/4/1 IMP. Key specifications: mounting type Chassis Mount, size / dimension 2.810" L x 1.000" W (71.37mm x 25.40mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 2, 4, 8 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | General Purpose |
| Frequency Range | 150Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 8W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.810" L x 1.000" W (71.37mm x 25.40mm) |
| Height - Seated (Max) | 1.630" (41.40mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 125H and get a quote within 24 hours.
