TRANSFORMER 10W 70MA TUBE SNGL

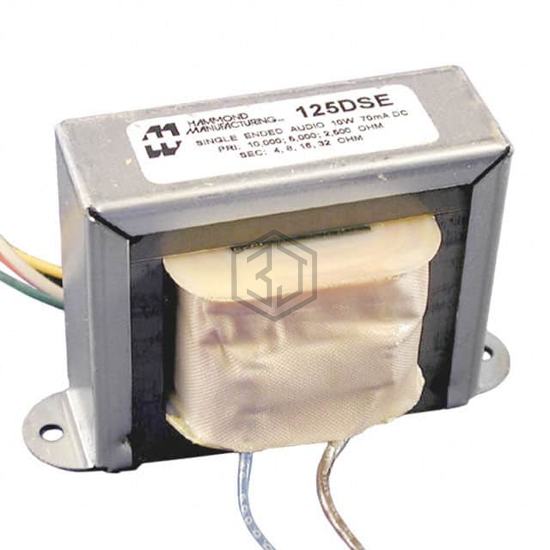

125DSE is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER 10W 70MA TUBE SNGL. Key specifications: mounting type Chassis Mount, size / dimension 4.000" L x 2.100" W (101.60mm x 53.34mm), termination style Wire Leads, frequency range 100Hz ~ 15kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 2.5k ~ 10k |
| Impedance - Secondary (Ohms) | 4 ~ 32 |
| DC Resistance (DCR) - Primary | 115Ohm |
| DC Resistance (DCR) - Secondary | 590mOhm |
| Transformer Type | General Purpose |
| Frequency Range | 100Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 1500V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 10W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.000" L x 2.100" W (101.60mm x 53.34mm) |
| Height - Seated (Max) | 2.630" (66.80mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 125DSE and get a quote within 24 hours.
