TRANSFORMER 8W 60MA TUBE SNGL

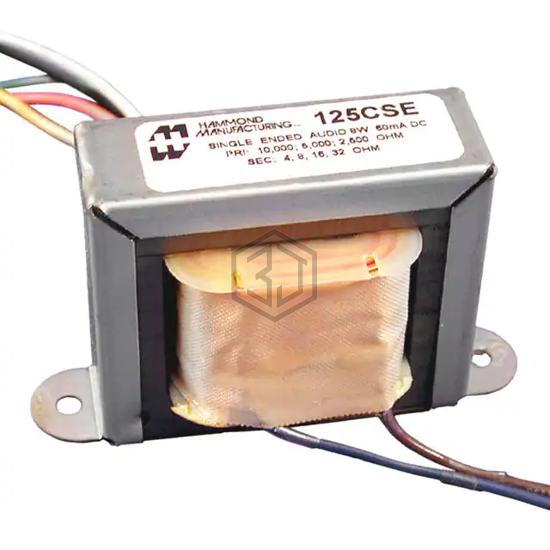

125CSE is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER 8W 60MA TUBE SNGL. Key specifications: mounting type Chassis Mount, size / dimension 3.690" L x 1.860" W (93.73mm x 47.24mm), termination style Wire Leads, frequency range 100Hz ~ 15kHz.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 2.5k ~ 10k |
| Impedance - Secondary (Ohms) | 4 ~ 32 |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | General Purpose |
| Frequency Range | 100Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 8W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.690" L x 1.860" W (93.73mm x 47.24mm) |
| Height - Seated (Max) | 2.310" (58.67mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 125CSE and get a quote within 24 hours.
