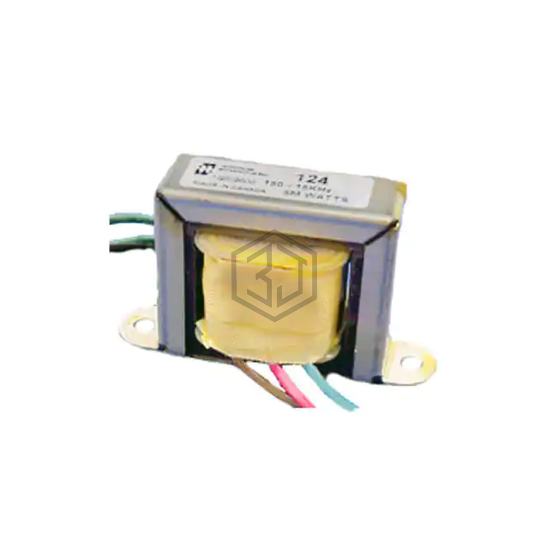

124E - Hammond Manufacturing - Audio Transformers

124E

Hammond Manufacturing

TRANS AUDIO 15KCT/33.8K/135K IMP

124E is a Audio Transformers manufactured by Hammond Manufacturing. TRANS AUDIO 15KCT/33.8K/135K IMP. Key specifications: mounting type Chassis Mount, size / dimension 2.880" L x 1.740" W (73.15mm x 44.20mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.

In Stock: 2

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary1:2.97, 1:5.94
Impedance - Primary (Ohms)7kCT, 15k
Impedance - Secondary (Ohms)135k, 33.8k/33.8k
DC Resistance (DCR) - Primary373Ohm, 355Ohm
DC Resistance (DCR) - Secondary1.63kOhm, 2.25kOhm
Transformer TypeTube Driver and Speaker Matching
Frequency Range150Hz ~ 15kHz
Frequency Response±1dB
Voltage - Isolation500Vrms
Insertion Loss-
Return Loss-
Power Level5W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension2.880" L x 1.740" W (73.15mm x 44.20mm)
Height - Seated (Max)2.370" (60.20mm)
Termination StyleWire Leads

Frequently Asked Questions

124E is a Audio Transformers manufactured by Hammond Manufacturing. TRANS AUDIO 15KCT/33.8K/135K IMP

The mounting type of 124E is Chassis Mount.

The size of 124E is 2.880" L x 1.740" W (73.15mm x 44.20mm).

The termination type of 124E is Wire Leads.
