TRANSFRMR AUDIO 7KCT/15.8KCT IMP

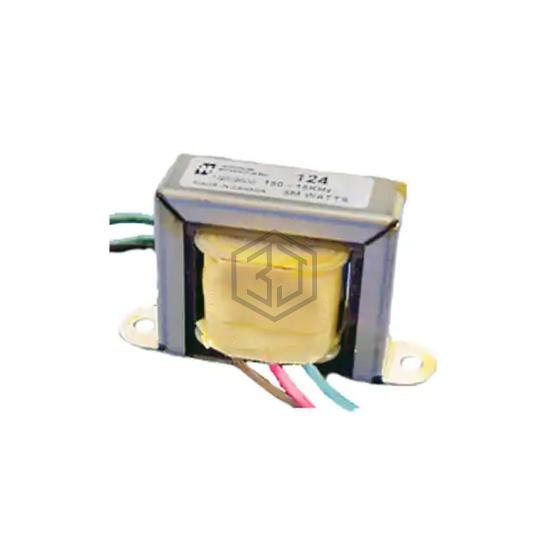

124D is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFRMR AUDIO 7KCT/15.8KCT IMP. Key specifications: mounting type Chassis Mount, size / dimension 2.810" L x 1.460" W (71.37mm x 37.08mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1.49 |
| Impedance - Primary (Ohms) | 7kCT |
| Impedance - Secondary (Ohms) | 15.8kCT |
| DC Resistance (DCR) - Primary | 218Ohm, 236Ohm |
| DC Resistance (DCR) - Secondary | 297Ohm, 394Ohm |
| Transformer Type | Tube Driver and Speaker Matching |
| Frequency Range | 150Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 500Vrms |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 5W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.810" L x 1.460" W (71.37mm x 37.08mm) |
| Height - Seated (Max) | 1.680" (42.67mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 124D and get a quote within 24 hours.
