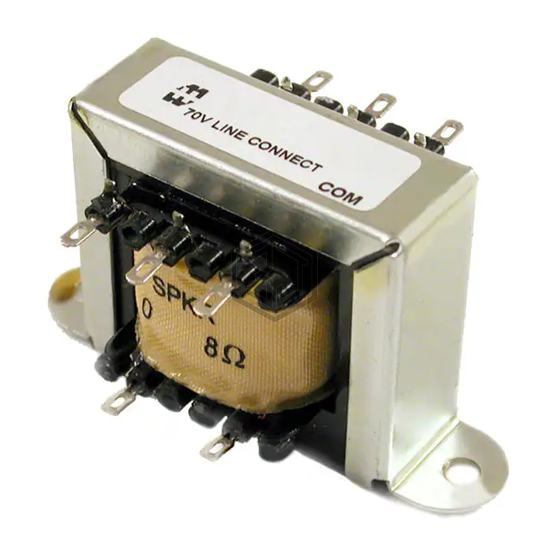

TRANSFORMER AUDIO MATCHING 100W
119Y100 is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO MATCHING 100W. Key specifications: mounting type Chassis Mount, size / dimension 3.500" L x 3.130" W (88.90mm x 79.50mm), termination style Wire Leads, frequency range 50Hz ~ 10kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 16, 8 |
| Impedance - Secondary (Ohms) | 70V |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Sound Distribution |
| Frequency Range | 50Hz ~ 10kHz |
| Frequency Response | - |
| Voltage - Isolation | 70V |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 100W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.500" L x 3.130" W (88.90mm x 79.50mm) |
| Height - Seated (Max) | 3.810" (96.77mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 119Y100 and get a quote within 24 hours.
