TRANSF LINE MATCHING 8W 8 OHM

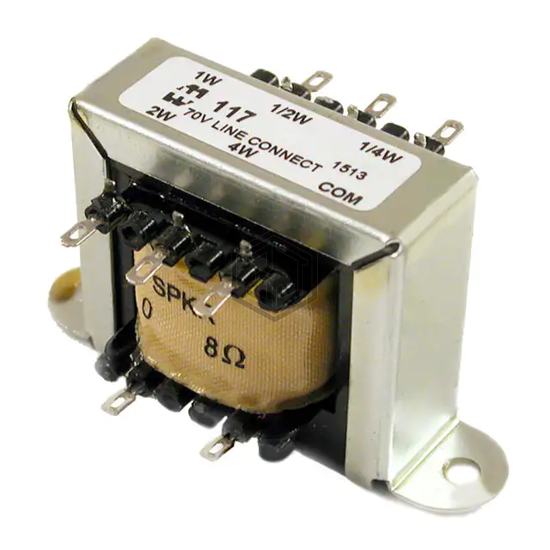

117F8 is a Audio Transformers manufactured by Hammond Manufacturing. TRANSF LINE MATCHING 8W 8 OHM. Key specifications: mounting type Chassis Mount, size / dimension 3.250" L x 1.750" W (82.55mm x 44.45mm), termination style Solder Lug, frequency range 100Hz ~ 9kHz.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 8 |
| Impedance - Secondary (Ohms) | 70V |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Sound Distribution |
| Frequency Range | 100Hz ~ 9kHz |
| Frequency Response | 1dB |
| Voltage - Isolation | - |
| Insertion Loss | 2dB |
| Return Loss | - |
| Power Level | 8W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.250" L x 1.750" W (82.55mm x 44.45mm) |
| Height - Seated (Max) | 2.000" (50.80mm) |
| Termination Style | Solder Lug |
Submit your RFQ for 117F8 and get a quote within 24 hours.
