TRANSFORMER AUDIO 10KCT/1.5KCT

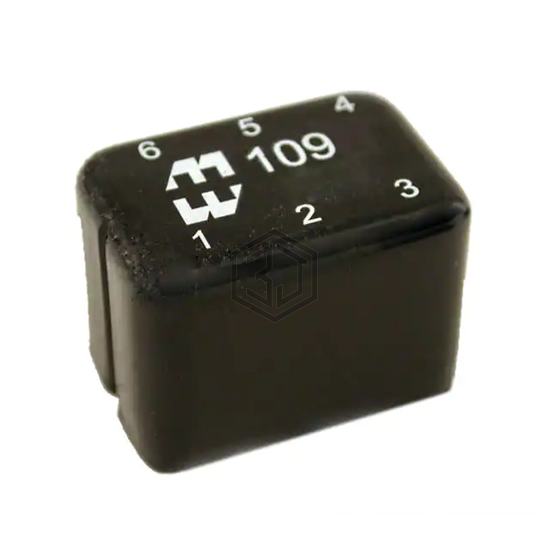

109R is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 10KCT/1.5KCT. Key specifications: mounting type Through Hole, size / dimension 1.315" L x 0.930" W (33.40mm x 23.62mm), termination style PC Pin, frequency range 300Hz ~ 50kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 5.16:1 |
| Impedance - Primary (Ohms) | 10kCT |
| Impedance - Secondary (Ohms) | 1.5kCT |
| DC Resistance (DCR) - Primary | 384Ohm |
| DC Resistance (DCR) - Secondary | 58Ohm |
| Transformer Type | Miniature Epoxy Potted |
| Frequency Range | 300Hz ~ 50kHz |
| Frequency Response | ±1.5dB |
| Voltage - Isolation | 100VRMS |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 2W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.315" L x 0.930" W (33.40mm x 23.62mm) |
| Height - Seated (Max) | 0.920" (23.37mm) |
| Termination Style | PC Pin |
Submit your RFQ for 109R and get a quote within 24 hours.
