TRANSFORMER AUDIO 600CT/3.2

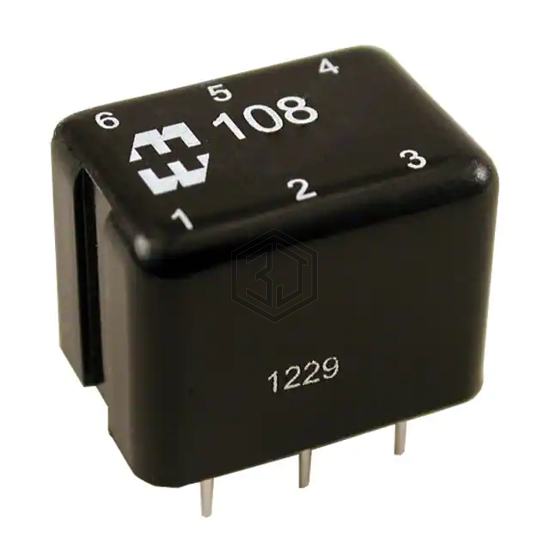

108E is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 600CT/3.2. Key specifications: mounting type Through Hole, size / dimension 1.030" L x 0.770" W (26.16mm x 19.56mm), termination style PC Pin, frequency range 300Hz ~ 50kHz.
In Stock: 103
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 13.71:1 |
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 3.2 |
| DC Resistance (DCR) - Primary | 54Ohm |
| DC Resistance (DCR) - Secondary | 400mOhm |
| Transformer Type | Miniature Epoxy Potted |
| Frequency Range | 300Hz ~ 50kHz |
| Frequency Response | ±1.75dB |
| Voltage - Isolation | 100VRMS |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 500mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.030" L x 0.770" W (26.16mm x 19.56mm) |
| Height - Seated (Max) | 0.770" (19.56mm) |
| Termination Style | PC Pin |
Submit your RFQ for 108E and get a quote within 24 hours.
