TRANSFORMER AUDIO 600CT/600

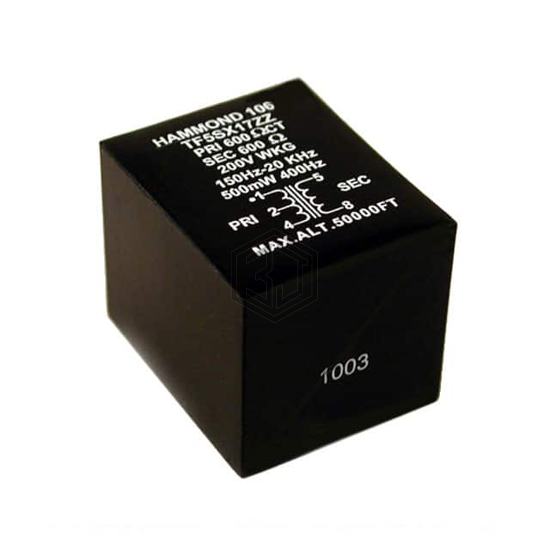

106E is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 600CT/600. Key specifications: mounting type Through Hole, size / dimension 1.080" L x 0.880" W (27.43mm x 22.35mm), termination style PC Pin, frequency range 150Hz.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 65Ohm |
| DC Resistance (DCR) - Secondary | 83Ohm |
| Transformer Type | Miniature Epoxy Potted |
| Frequency Range | 150Hz |
| Frequency Response | -1dB |
| Voltage - Isolation | 200V |
| Insertion Loss | 1dB |
| Return Loss | - |
| Power Level | 500mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.080" L x 0.880" W (27.43mm x 22.35mm) |
| Height - Seated (Max) | 0.950" (24.13mm) |
| Termination Style | PC Pin |
Submit your RFQ for 106E and get a quote within 24 hours.
