TRANSFORMER AUDIO 600/1500

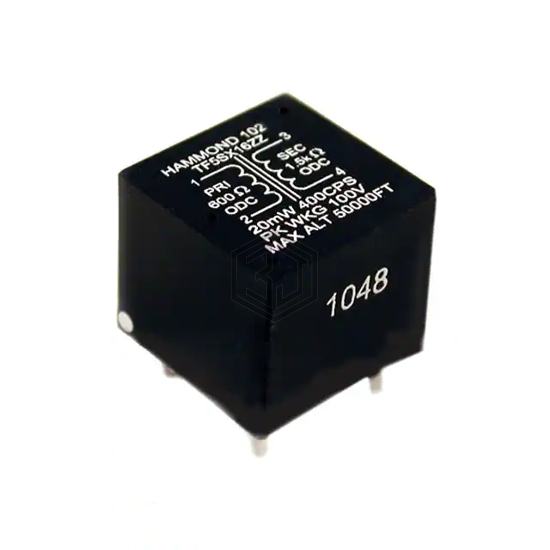

102D is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 600/1500. Key specifications: mounting type Through Hole, size / dimension 0.570" L x 0.570" W (14.48mm x 14.48mm), termination style PC Pin, frequency range 310Hz.
In Stock: 59
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 1.5k |
| DC Resistance (DCR) - Primary | 43Ohm |
| DC Resistance (DCR) - Secondary | 85Ohm |
| Transformer Type | Miniature Epoxy Potted |
| Frequency Range | 310Hz |
| Frequency Response | -1dB |
| Voltage - Isolation | 100V |
| Insertion Loss | 1.5dB |
| Return Loss | - |
| Power Level | 20mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.570" L x 0.570" W (14.48mm x 14.48mm) |
| Height - Seated (Max) | 0.480" (12.19mm) |
| Termination Style | PC Pin |
Submit your RFQ for 102D and get a quote within 24 hours.
