LOGIC CONTROLLED HIGH-SIDE POWER

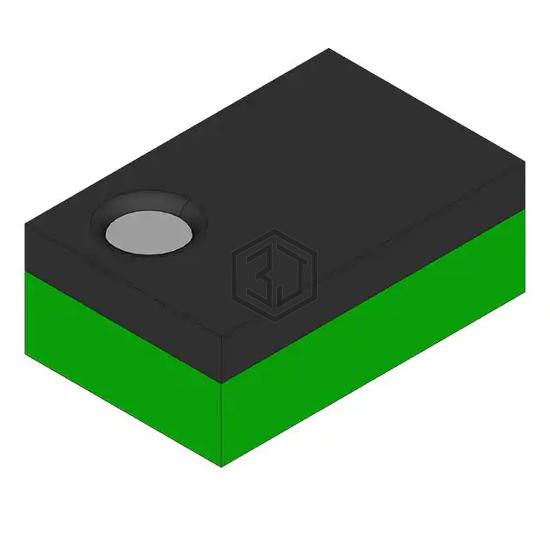

NX5P2924BUK012 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. LOGIC CONTROLLED HIGH-SIDE POWER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - load 0.8V ~ 5.5V, package / case 6-XFBGA, WLCSP.
In Stock: 200,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 14mOhm |
| Input Type | Inverting |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WLCSP (0.87x1.37) |
| Package / Case | 6-XFBGA, WLCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP91352MN1-DT8-7 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 12WQFN | 73% | View |
| PI5USB2546ZHEX | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 16TQFN | 71% | View |
| TPS2540ARTER | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 71% | View |
| TPS2561ADRCR | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 67% | View |
| TPS2561AQDRCRQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 67% | View |
| TPS2561AQDRCTQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 67% | View |
Submit your RFQ for NX5P2924BUK012 and get a quote within 24 hours.
