IC PWR SWITCH N-CHAN 1:1 16TQFN

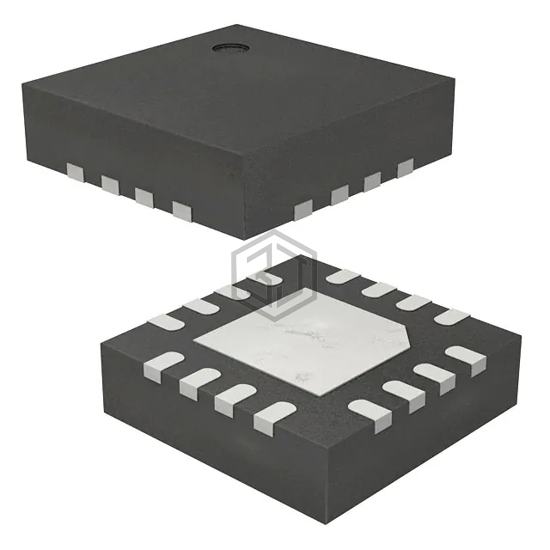

PI5USB2546ZHEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 16-WFQFN Exposed Pad.
In Stock: 6,637
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 73mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TQFN (3x3) |
| Package / Case | 16-WFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AP2820EMMTR-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 91% | View |
| AP2820EMMTR-G1-01 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 91% | View |
| AP2820HMMTR-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8MSOP | 91% | View |
| TPS2561AQDRCRQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 77% | View |
| TPS2561AQDRCTQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 77% | View |
| NX5P2924BUK012 | Freescale Semiconductor | LOGIC CONTROLLED HIGH-SIDE POWER | 71% | View |
Submit your RFQ for PI5USB2546ZHEX and get a quote within 24 hours.
