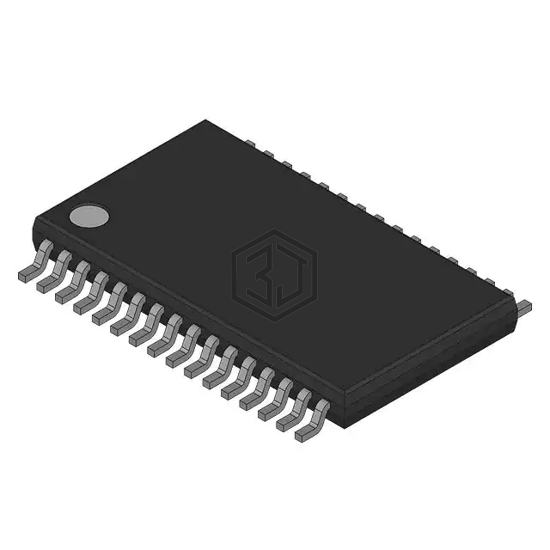

HIGH-SIDE SWITCH, 36V, DUAL 22MO
MC22XSD200BEK is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. HIGH-SIDE SWITCH, 36V, DUAL 22MO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3.3V ~ 5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 5,597
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3.3V ~ 5V |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 22mOhm |
| Input Type | - |
| Features | Slew Rate Controlled |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-HSOP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS70802EPAXUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 TSDSO-14 | 95% | View |
| BTT60502ERAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TDSO-14 | 92% | View |
| BTS724GXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-20 | 81% | View |
| TPS2546RTET | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 77% | View |
| TPS2547RTER | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 77% | View |
| TPS254900IRVCRQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 20WQFN | 77% | View |
Submit your RFQ for MC22XSD200BEK and get a quote within 24 hours.
