N-CHANNEL IGBT

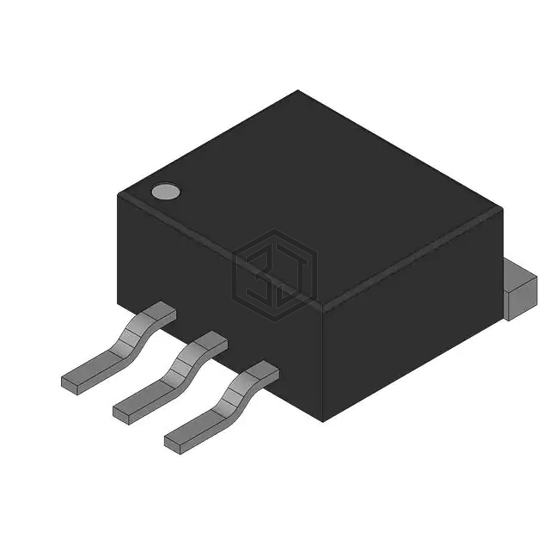

SGW23N60UFDTM is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. N-CHANNEL IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 23 A.
In Stock: 50,127
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 23 A |
| Current - Collector Pulsed (Icm) | 92 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 12A |
| Power - Max | 100 W |
| Switching Energy | 115µJ (on), 135µJ (off) |
| Input Type | Standard |
| Gate Charge | 49 nC |
| Td (on/off) @ 25°C | 17ns/60ns |
| Test Condition | 300V, 12A, 23Ohm, 15V |
| Reverse Recovery Time (trr) | 60 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK (TO-263) |
