IGBT, 13A, 600V, N-CHANNEL

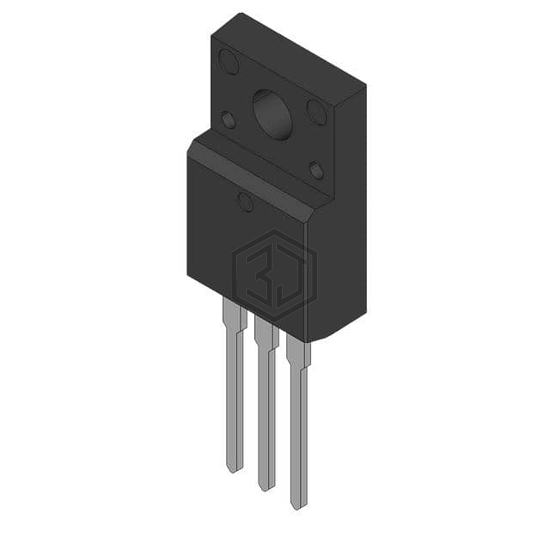

SGS13N60UFDTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. IGBT, 13A, 600V, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 13 A.
In Stock: 117,920
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 13 A |
| Current - Collector Pulsed (Icm) | 52 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 6.5A |
| Power - Max | 45 W |
| Switching Energy | 85µJ (on), 95µJ (off) |
| Input Type | Standard |
| Gate Charge | 25 nC |
| Td (on/off) @ 25°C | 20ns/70ns |
| Test Condition | 300V, 6.5A, 50Ohm, 15V |
| Reverse Recovery Time (trr) | 55 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 |
Submit your RFQ for SGS13N60UFDTU and get a quote within 24 hours.
