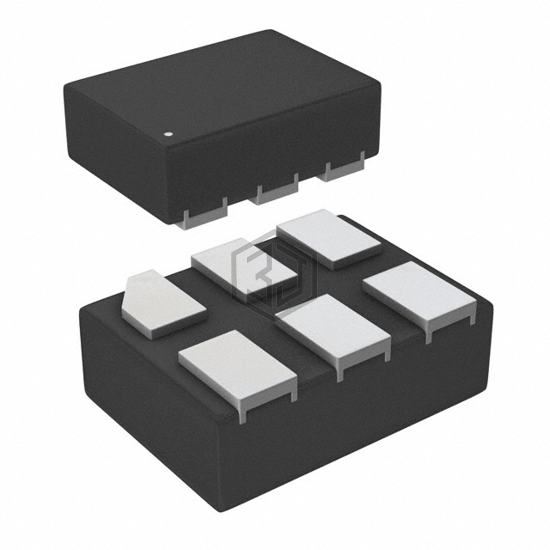

IC SWITCH SPDT 6DFN
STG3155DTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 10,522
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 21mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| -3db Bandwidth | 70MHz |
| Charge Injection | 53pC |
| Channel Capacitance (CS(off), CD(off)) | 6.6pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-DFN (1.45x1) |
STG3155DTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3699AUTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 76% | View |
| STG3699AQTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 76% | View |
| CD74HC4067M | Texas Instruments | IC MUX/DEMUX 1X16 24SOIC | 75% | View |
| CD74HC4067M96 | Texas Instruments | IC MUX/DEMUX 1X16 24SOIC | 75% | View |
| CD74HC4351M | Texas Instruments | IC MUX/DEMUX 8X1 20SOIC | 61% | View |
| CD74HC4351M96 | Texas Instruments | IC MUX/DEMUX 8X1 20SOIC | 61% | View |
