IGBT, 300V, N-CHANNEL
FGPF90N30 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. IGBT, 300V, N-CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, power - max 56.8 W.
In Stock: 1,853
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Current - Collector (Ic) (Max) | - |
| Current - Collector Pulsed (Icm) | 220 A |
| Vce(on) (Max) @ Vge, Ic | 1.55V @ 15V, 30A |
| Power - Max | 56.8 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 93 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | - |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

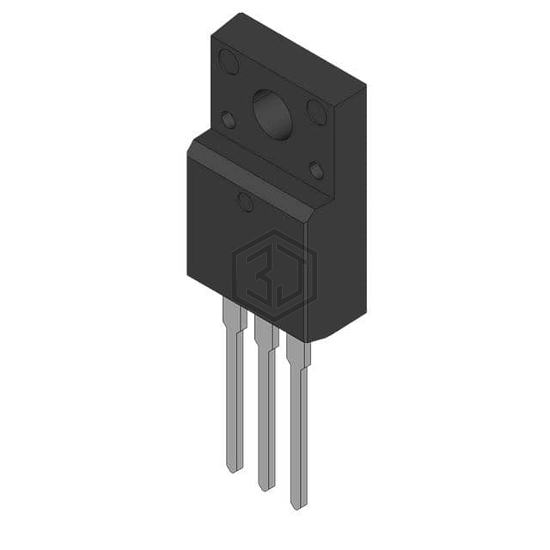

| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 |
Submit your RFQ for FGPF90N30 and get a quote within 24 hours.
