INSULATED GATE BIPOLAR TRANSISTO

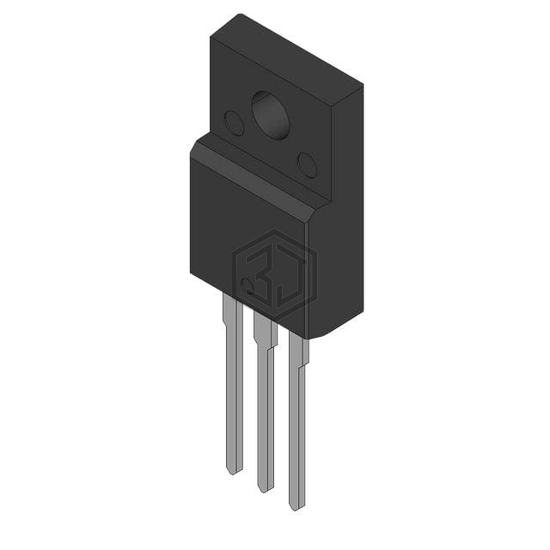

FGPF4565 is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, power - max 30 W.
In Stock: 1,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | - |
| Current - Collector Pulsed (Icm) | 170 A |
| Vce(on) (Max) @ Vge, Ic | 1.88V @ 15V, 30A |
| Power - Max | 30 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 40.3 nC |
| Td (on/off) @ 25°C | 11.2ns/40.8ns |
| Test Condition | 400V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 |
Submit your RFQ for FGPF4565 and get a quote within 24 hours.
