INSULATED GATE BIPOLAR TRANSISTO

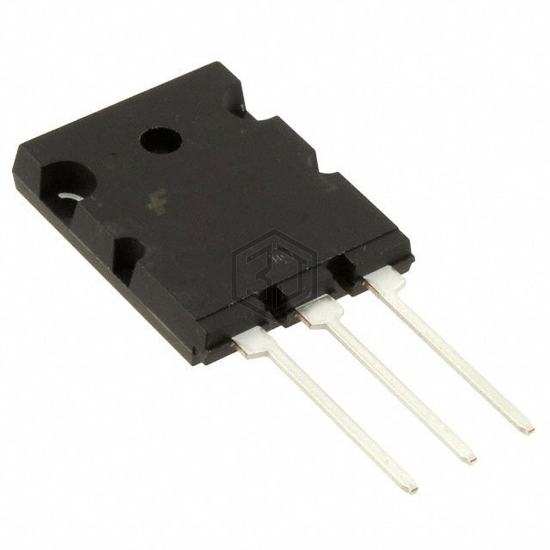

FGL40N120ANTU is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 64 A.
In Stock: 1,998
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 64 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A |
| Power - Max | 500 W |
| Switching Energy | 2.3mJ (on), 1.1mJ (off) |
| Input Type | Standard |
| Gate Charge | 220 nC |
| Td (on/off) @ 25°C | 15ns/110ns |
| Test Condition | 600V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | HPM F2 |
Submit your RFQ for FGL40N120ANTU and get a quote within 24 hours.
