INSULATED GATE BIPOLAR TRANSISTO

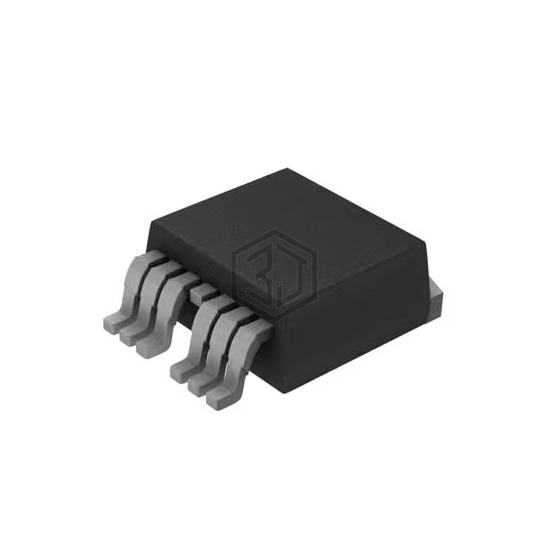

FGB3040CS is a Transistors - IGBTs - Single manufactured by Fairchild Semiconductor. INSULATED GATE BIPOLAR TRANSISTO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab), TO-263CB, current - collector (ic) (max) 21 A.
In Stock: 59,799
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 430 V |
| Current - Collector (Ic) (Max) | 21 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4V, 6A |
| Power - Max | 150 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 15 nC |
| Td (on/off) @ 25°C | -/4.7µs |
| Test Condition | 300V, 1kOhm, 5V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
| Supplier Device Package | D²PAK-6 |
Submit your RFQ for FGB3040CS and get a quote within 24 hours.
