HALF BRIDGE BASED MOSFET DRIVER

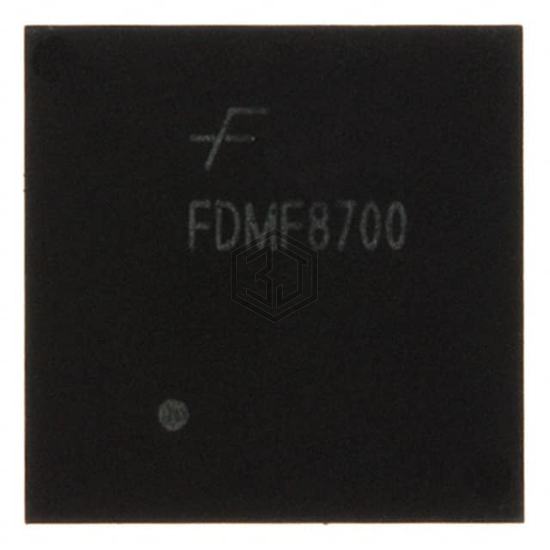

FDMF8700 is a PMIC - Full, Half-Bridge Drivers manufactured by Fairchild Semiconductor. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 6.4V ~ 13.5V, package / case 56-PowerWFQFN Module.
In Stock: 177,347
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | DrMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 65A |
| Voltage - Supply | 6.4V ~ 13.5V |
| Voltage - Load | 6.4V ~ 14V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 56-PowerWFQFN Module |
| Supplier Device Package | 56-Power88™ |
FDMF8700 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FDMF6700 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 94% | View |
| FDMF8704V | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 92% | View |
| FDMF8704 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 92% | View |
| FDMF8705 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 85% | View |
| FDMF6704V | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 79% | View |
| FDMF6704 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 77% | View |
Submit your RFQ for FDMF8700 and get a quote within 24 hours.
