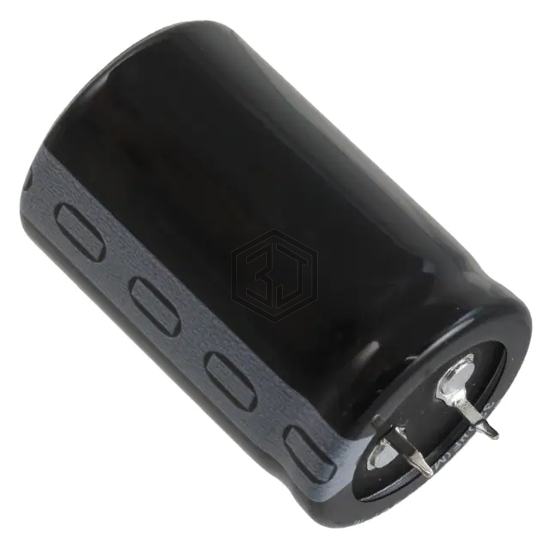

CAP ALUM 820UF 20% 250V SNAP
B43504B2827M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 820UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,865
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
B43504B2827M000 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504C2827M7 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 99% | View |
| ECO-S2EB821DA | Panasonic Electronic Components | CAP ALUM 820UF 20% 250V SNAP | 94% | View |
| MAL225932821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 200V SNAP | 90% | View |
| 100ZLH820MEFCGC18X40 | Rubycon | CAP ALUM 820UF 20% 100V RADIAL | 67% | View |
| 860040780016 | Würth Elektronik | CAP ALUM 820UF 20% 63V RADIAL | 62% | View |
| LGU2A821MELZ | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 53% | View |
