Panasonic Electronic Components
CAP ALUM 820UF 20% 250V SNAP

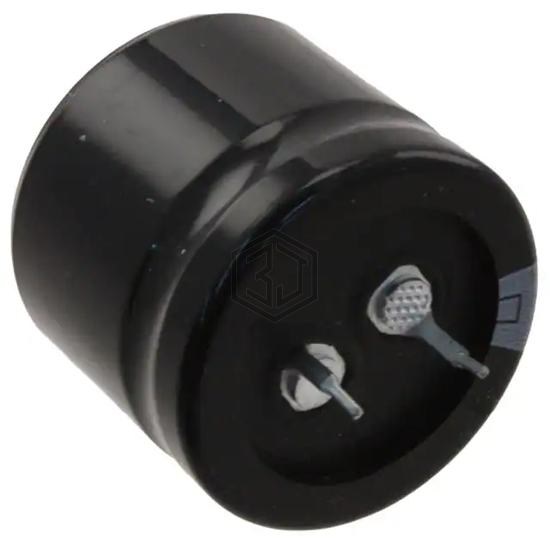

ECO-S2EB821DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 3,654
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 202mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EB821DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGG2P821MELZ50 | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 90% | View |
| UBY1K821MHL6TN | Nichicon | CAP ALUM 820UF 20% 80V RADIAL | 70% | View |
| 100ZLH820MEFCGC18X40 | Rubycon | CAP ALUM 820UF 20% 100V RADIAL | 67% | View |
| MAL215819821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 100V SNAP | 66% | View |
| LGU2A821MELZ | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 60% | View |
| 10YXG820MEFCT78X11.5 | Rubycon | CAP ALUM 820UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for ECO-S2EB821DA and get a quote within 24 hours.
