CAP ALUM 820UF 20% 100V RADIAL

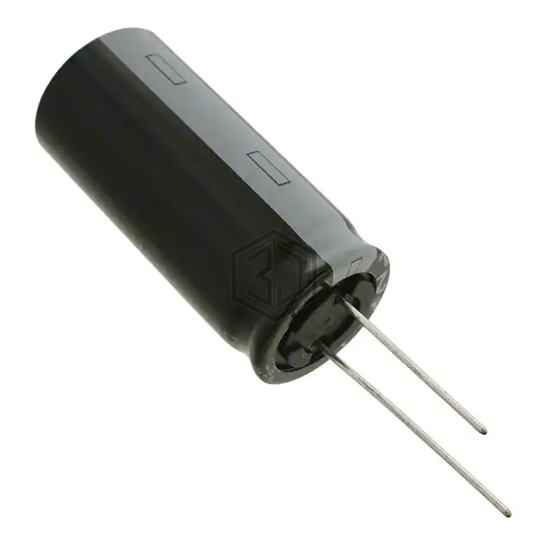

100ZLH820MEFCGC18X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.106 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.51 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE630ELL821MLN3S | Chemi-Con | CAP ALUM 63V POLAR | 77% | View |
| EKY-630ELL821MLN3S | Chemi-Con | CAP ALUM 63V POLAR | 76% | View |
| UHW1K821MHD6TN | Nichicon | CAP ALUM 820UF 20% 80V RADIAL | 75% | View |
| LGG2P821MELZ50 | Nichicon | CAP ALUM 820UF 20% 220V SNAP | 72% | View |
| LGU2A821MELZ | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 70% | View |
| MAL225932821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 200V SNAP | 64% | View |
